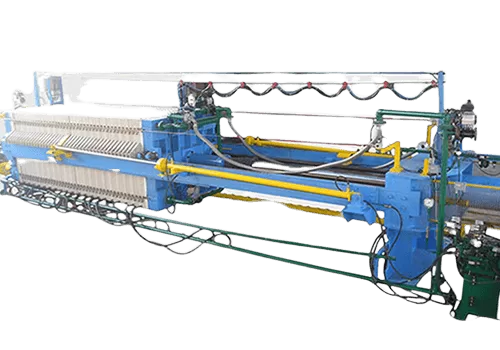

Yo-tana Automatic Multi Stage Plate shifting mechanism is designed to shift all the Filter Plates simultaneously in multi group at a time, along with the opening of the Filter Press in a sequential pattern. Part of the chambers are shifted by the help of main Hyd.. Cylinder & remaining part of chambers by side cylinders located on both side of M.S.Side bars. The Filter Plates are linked with the moving head by specially designed lever & links / belt for equidistance opening of the filter plates during cake discharge.
Yo-Tana Multi stage Plate Shifting type Filter Press are specially designed for Palm Oil Fractination Plants for huge and large scale production.
These Filter Presses are Fully Automatic unmanned PLC based machines and are meant for rapid cycle time and very less down time.
These Filter Press have closed discharge with transparent hoses and comes with an option of Top Corner, Bottom Corner and Centre Feed Detachable NBR Membranes with Antistatic application special for edible oil application.
