We manufacture a complete range of filter presses designed as per specific industrial requirements, including hydraulic, membrane, and plate & frame filter press systems.
We offer filter press sizes ranging from 300 mm to 2000 mm plates, available in multiple configurations such as recessed chamber, membrane, and plate & frame filter press systems.
| Size : | From 300 x 300 mm size up to 1500 x 1500 mm size |
| Type : | Chamber Recess Type, Plate and Frame Type, CGR type |
| Model : | Center Feed, Corner Feed, Top Center Feed. |
| Cake Thickness : | Thickness : 25 mm, 32 mm, 35 mm, 40 mm, 50 mm |
| Type of Discharge : | Open delivery, Closed Delivery, Top corner Washing, Closed Counter Current Washing, Open cum Closed Delivery |

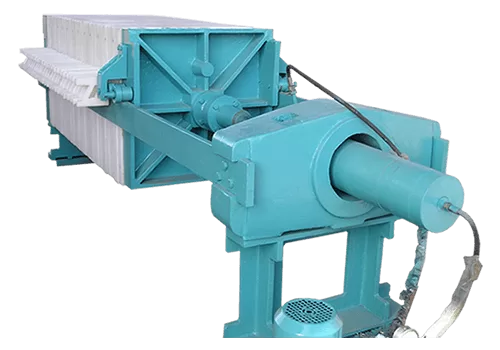

A hydraulic filter press operates in a batch process, where slurry is pumped into the system, and solid-liquid separation takes place through pressure filtration. As one of the leading hydraulic filter press manufacturers in India, Yo-Tana designs systems that ensure efficient filtration, higher productivity, and reduced operational costs for industries across Gujarat and India.
In each of the filtration cycle, slurry is filled into the press, and solids are separated in the form of a filter cake. This process is repeated for continuous operation. By applying high pressure, the system improves filtration speed and produces a filter cake with lower moisture content, making it ideal for industries like mining, chemicals, ETP, marble, and iron ore processing.
A hydraulic filter press operates on a batch process where slurry is pumped into multiple chambers formed by filter plates. These plates are compressed using a hydraulic closing system, ensuring leak-proof operation and uniform pressure.
Each plate is covered with a filter cloth that captures solid particles while allowing liquid (filtrate) to pass through. As filtration progresses, solids accumulate and form a dense filter cake inside the chambers.
This method ensures:
During the filtration cycle, slurry enters the chambers under pressure. The liquid passes through the filter cloth and exits through discharge outlets as clean filtrate.
The filtrate can be:
Once the filtration cycle is completed, the accumulated filter cake is discharged, and the system is prepared for the next batch. The entire process can be operated in manual, semi-automatic, or fully automatic modes, depending on the system configuration.
As the filter cake builds up inside the chambers, internal pressure gradually increases. This slows down the filtrate flow as liquid passes through the dense cake layer.
At this stage:
Once the required pressure is achieved, the filtration cycle ends and cake discharge begins.
As one of the reliable plate and frame filter press manufacturers, Yo-Tana offers systems widely used in:

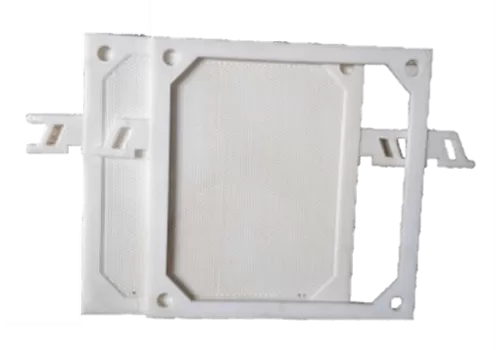

The plate & frame filter press consists of alternating plates and frames that create chambers for filtration. Slurry is pumped through feed ports, and solids are retained while filtered liquid flows out through designated channels.
Our modernised design ensures:
The system consists of solid plates covered with filter cloth and hollow frames placed between them. Slurry is pumped into these chambers, where filtration takes place.
The liquid passes through the cloth while solids remain inside, forming a filter cake. The filtered liquid is then discharged or reused as per process requirements.
This system is highly effective for applications requiring fine filtration and polishing processes.

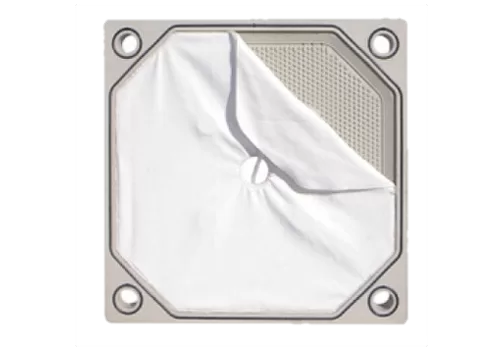

Designed to create chambers that efficiently collect solids during filtration.
Manufactured using polypropylene (PP), aluminium, and engineered materials for durability and long service life.
Advanced design ensures effective retention of fine particles for better filtration quality.
Suitable for industries like mining, ETP, chemicals, marble, ceramics, and polishing applications.
Quick filter cloth replacement ensures minimal downtime and easy operation.
Yo-Tana is a well-known name among hydraulic filter press manufacturers in India, offering a wide range of filtration solutions tailored to different industries.
Our systems are:
As leading hydraulic filter press manufacturers in Gujarat, we provide complete support including design, manufacturing, installation, and after-sales service across India.
Our hydraulic filter press systems are widely used in:
If you are looking for reliable hydraulic filter press manufacturers in India, Yo-Tana is your trusted partner for advanced filtration solutions.
We focus on delivering systems that improve plant efficiency, reduce downtime, and optimise filtration performance across industries. Contact us today to get a customised hydraulic filter press solution for your business.
Liquid is a main
ingredient in the ,...
Whether you’re processing
raw materials ,...
Reactive dye is a
class ofhighly ,...
Presently these P.P.
Filter presses ,...
We understand that
you are ,...
Presently these P.P.
Filter presses ,...
Various methods are
available for ,...
Presently these P.P.
Filter presses ,...
Presently these P.P.
Filter presses ,...
Wastewater from
textile industry ,...
On many production
processes ,...
As you aware, these
P.P.Filter ,...
A hydraulic filter press is a pressure-driven filtration system used for solid-liquid separation. Slurry is pumped into chambers, and hydraulic pressure compresses the plates to form a filter cake while allowing clean filtrate to pass through. It ensures efficient dewatering and high solid recovery.
Leading hydraulic filter press manufacturers in India like Yo-Tana offer customised, high-performance filtration systems designed for industries such as mining, chemicals, and wastewater treatment, ensuring durability, efficiency, and low operating costs.
Hydraulic filter press manufacturers in Gujarat are known for strong engineering capabilities, cost-effective production, and quick service support. Companies like Yo-Tana provide customised solutions with faster delivery across India.

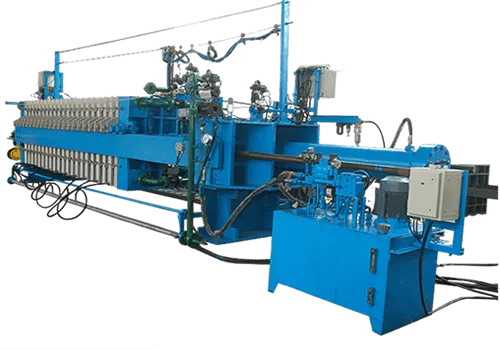

A hydraulic filter press requires manual or semi-automatic operation using hydraulic closing systems, whereas a fully automatic filter press includes automated plate shifting, cake discharge, and minimal manual intervention.
Hydraulic filter press machines are widely used in:
A plate and frame filter press consists of alternating plates and frames that create chambers for filtration. It is commonly used for fine filtration and polishing applications where high clarity of filtrate is required.
Yes, Yo-Tana is among the trusted plate and frame filter press manufacturers in India, offering customised solutions with high filtration efficiency and long service life.
Absolutely. As experienced hydraulic filter press manufacturers in India, we offer custom-built solutions based on slurry type, filtration capacity, plate size, automation level, and industry-specific requirements.
Filtration capacity depends on plate size, number of chambers, slurry characteristics, and operating pressure. Systems can be designed for small-scale to large industrial applications.
Yes, we provide complete support including installation, operator training, maintenance services, and spare parts supply to ensure uninterrupted operations.
Filter plates are typically made from polypropylene (PP), cast iron, or stainless steel, depending on the application, chemical compatibility, and pressure requirements.
Modern hydraulic filter presses are designed to minimise energy consumption with optimised cycle times and efficient pressure control, making them cost-effective for long-term use.
Delivery timelines generally range between 4 to 8 weeks depending on customization, size, and order requirements.
Yes, as one of the reliable hydraulic filter press suppliers in India, Yo-Tana provides pan-India delivery with strong logistics and service support.
